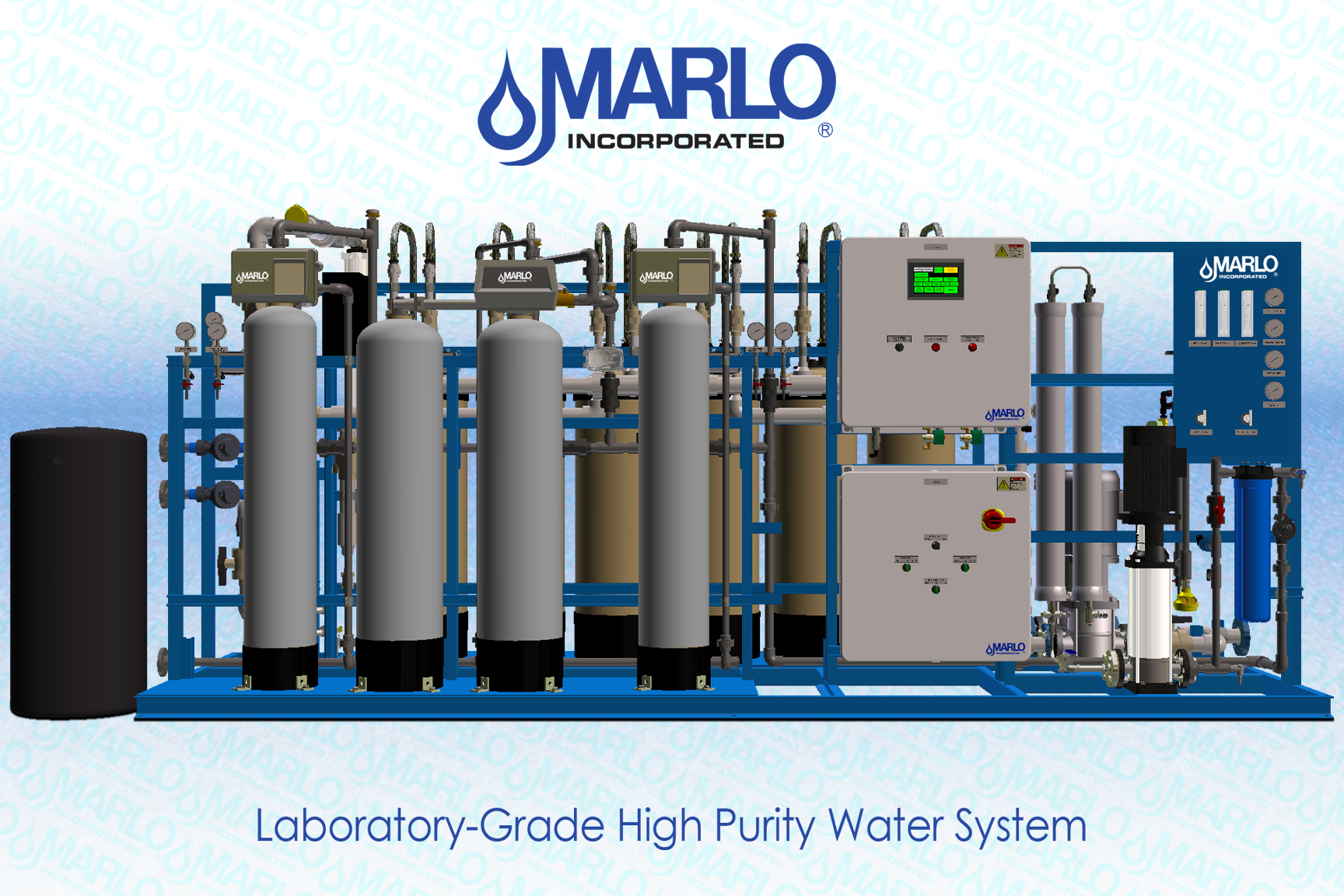

Laboratory-Grade High Purity Water System

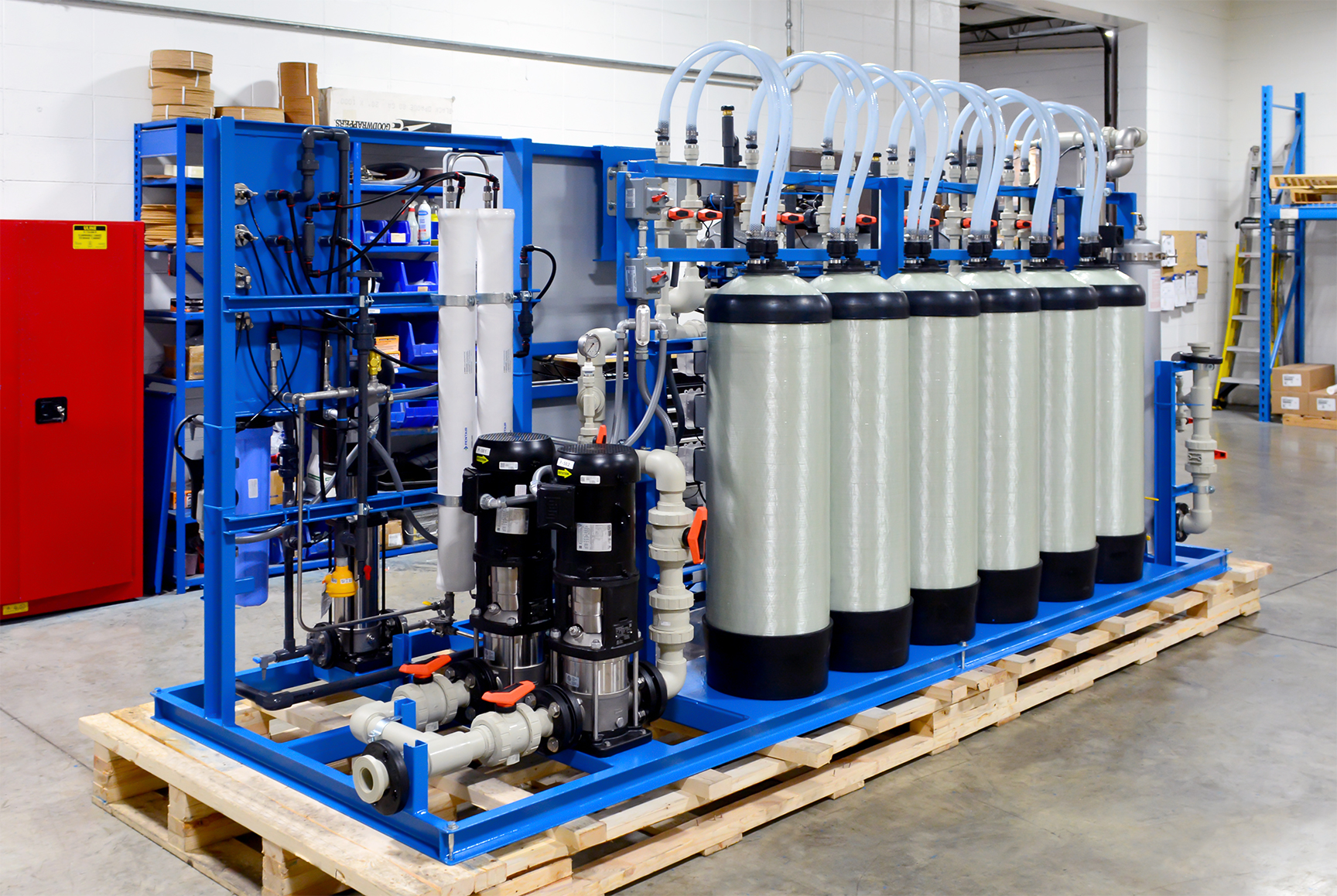

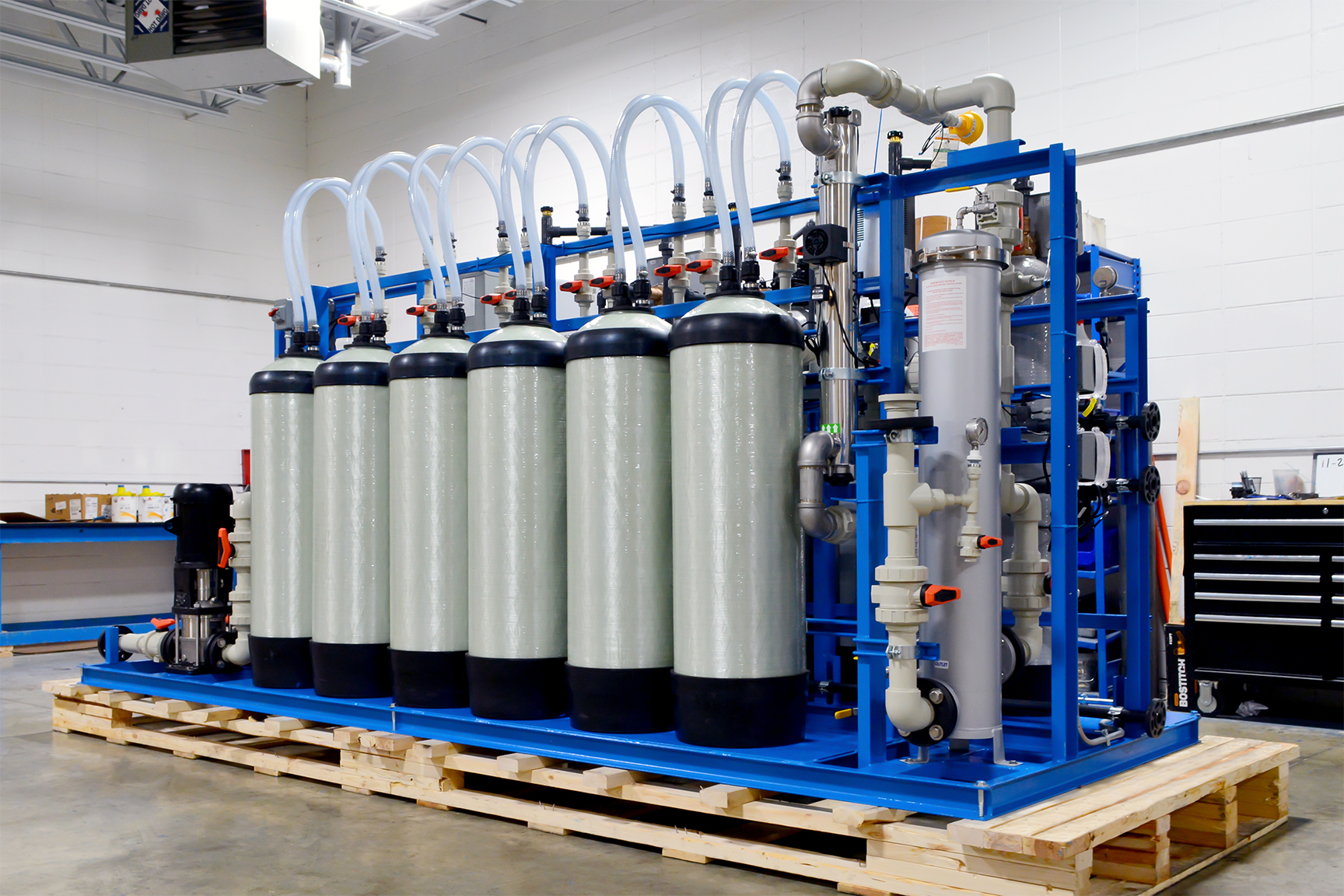

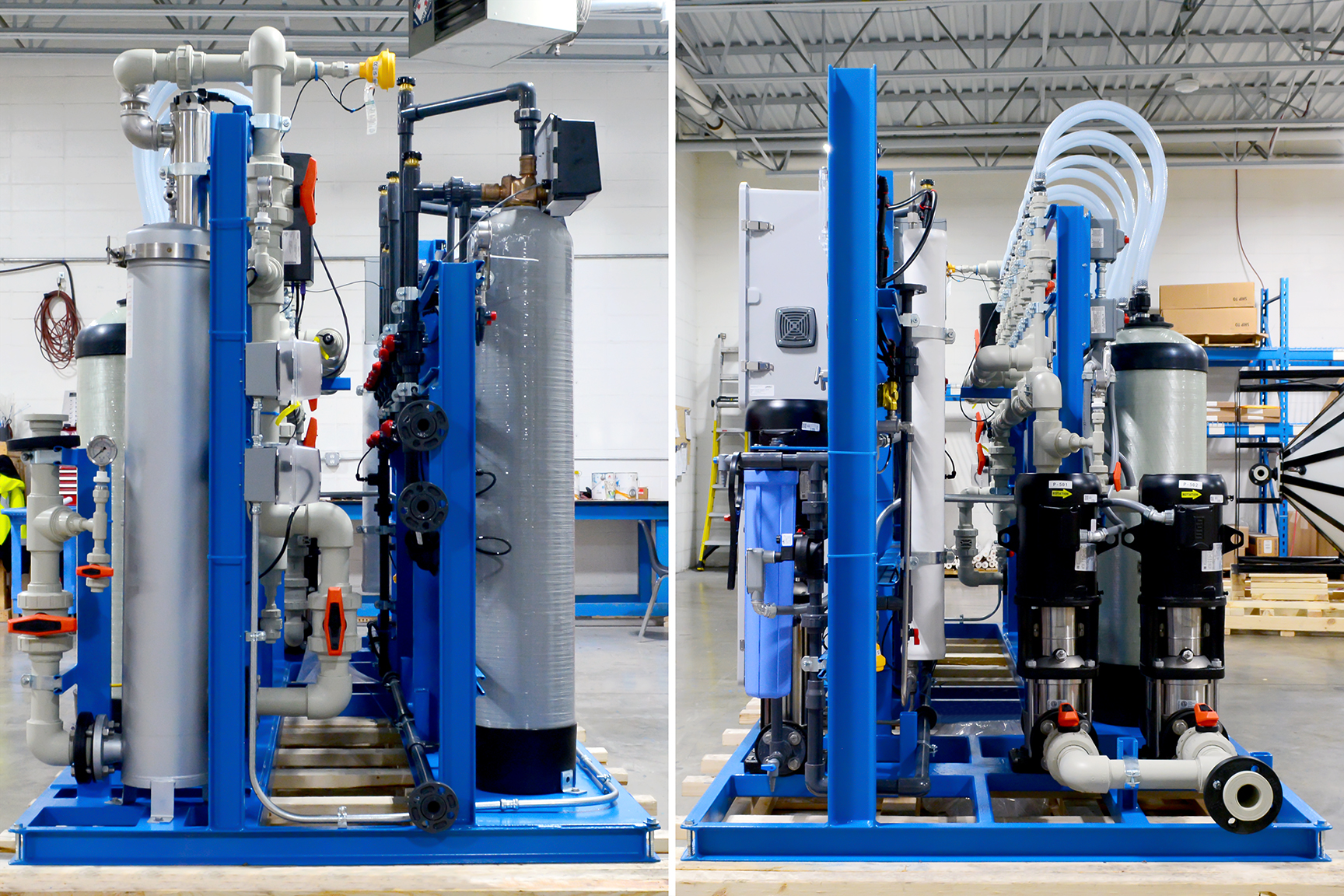

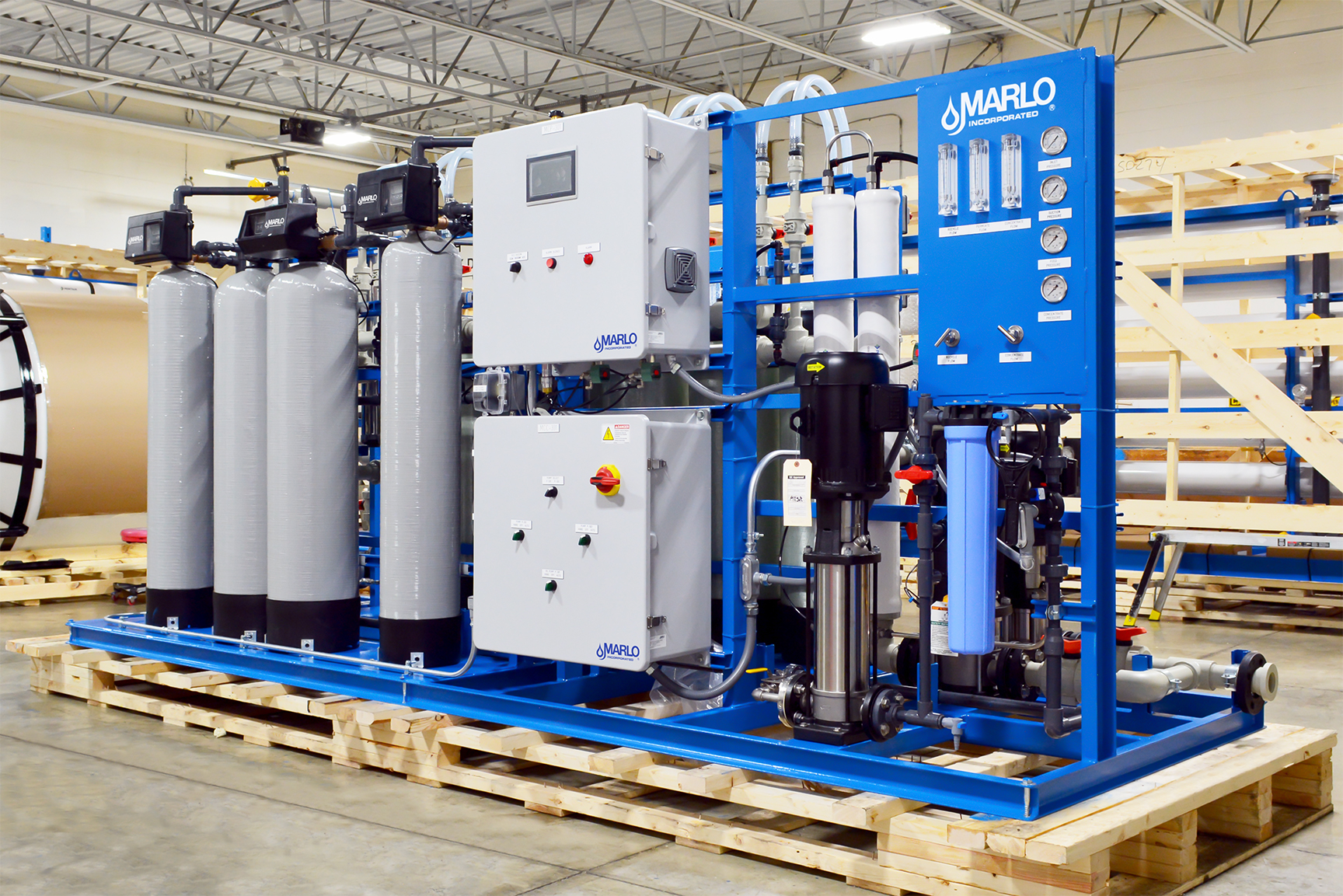

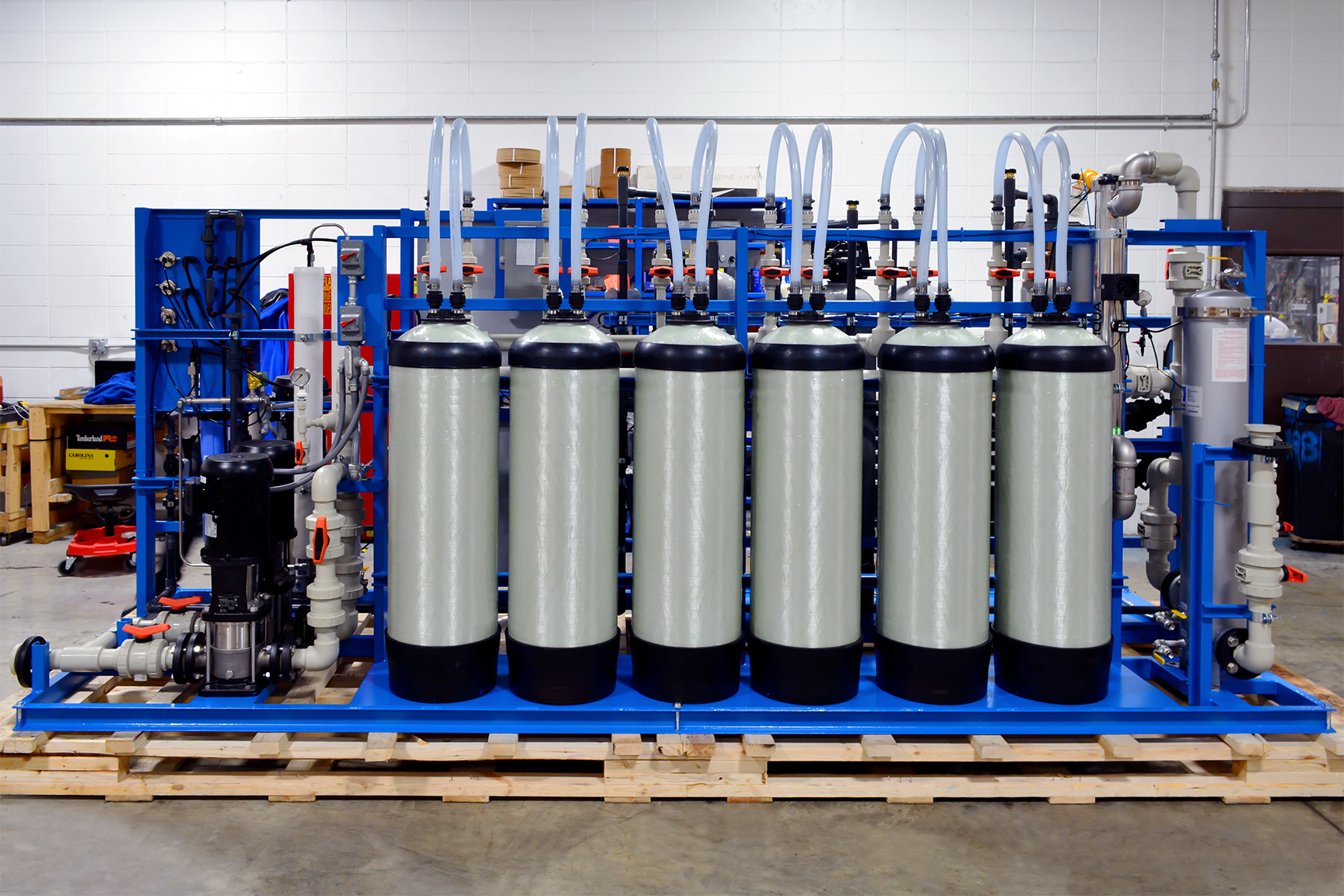

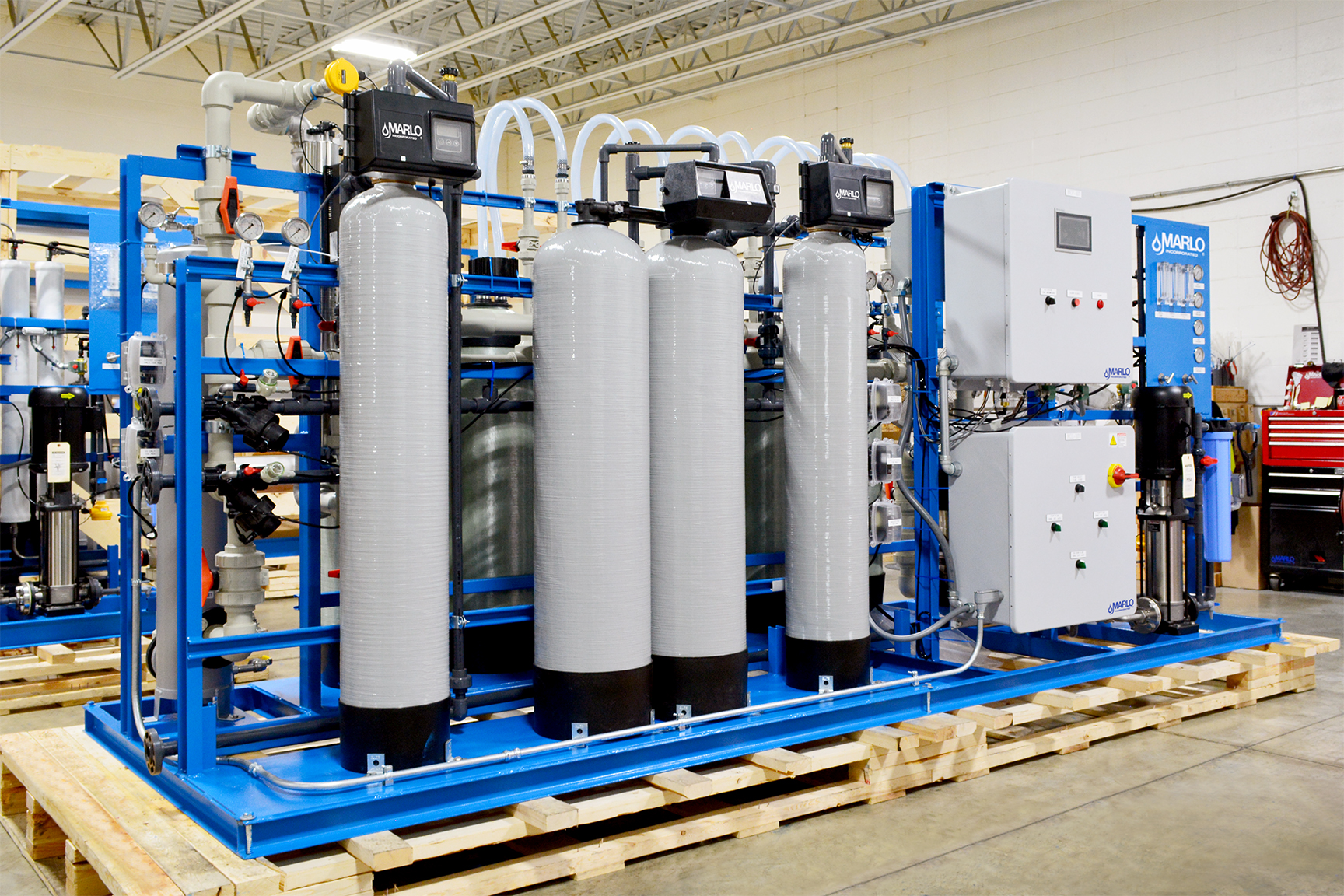

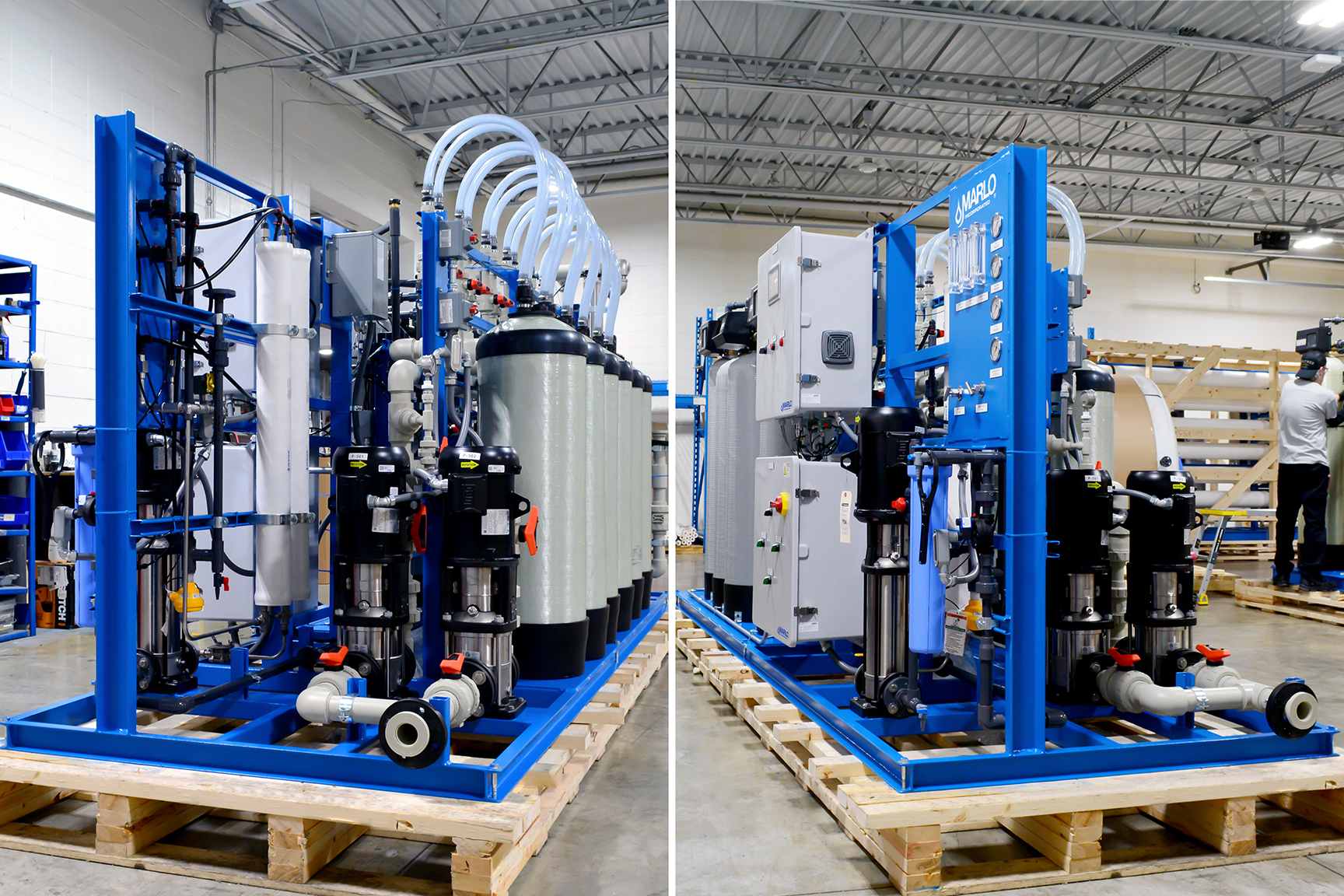

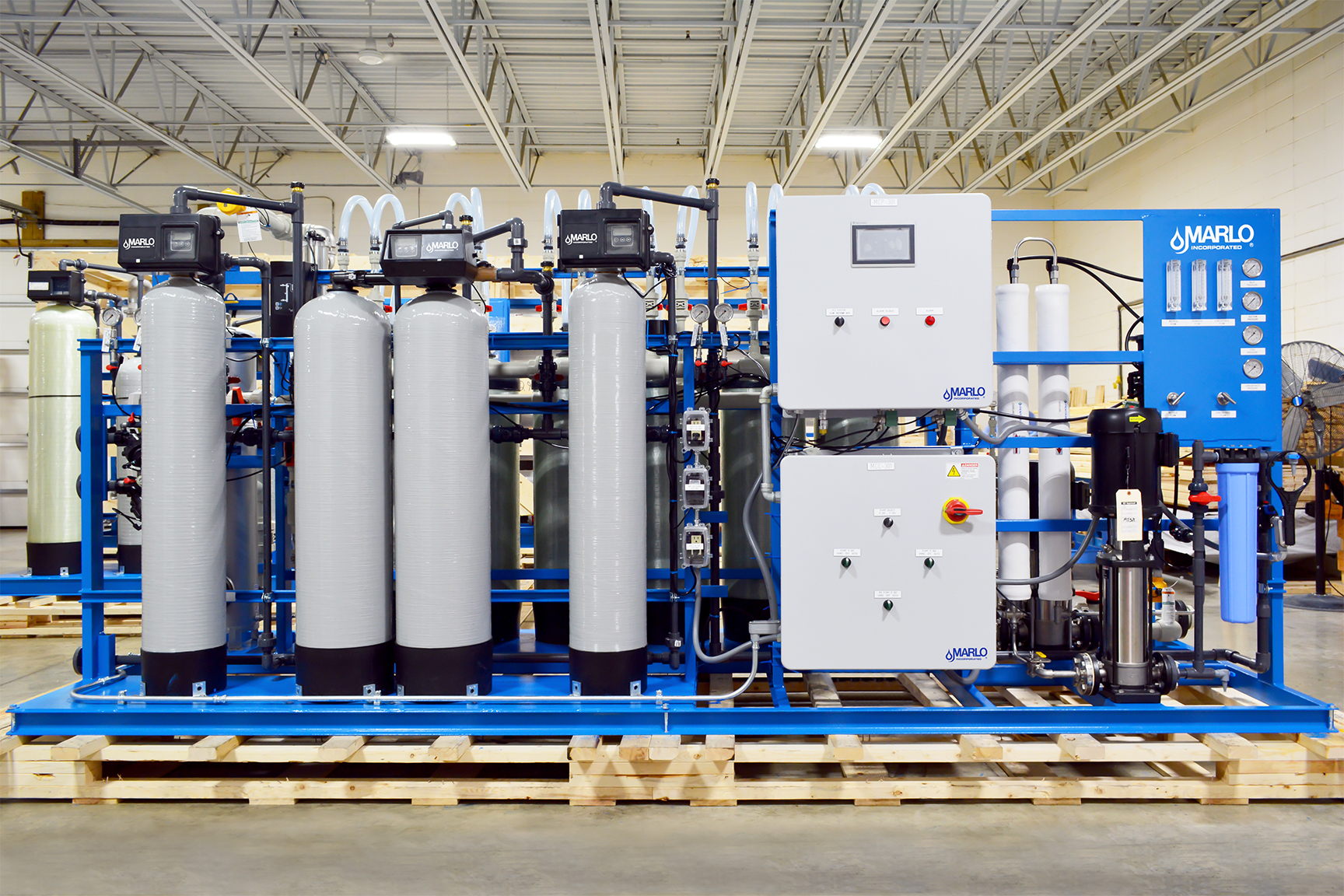

MARLO Laboratory-Grade, High Purity Water System for a New Life Sciences Building at a major US University. Fully integrated, skid mounted system including a 3,600 GPD Reverse Osmosis (RO) machine with backwashable media filter, water softener, and activated carbon filter as pre-treatment. Distribution and Post-Treatment equipment includes Duplex 40-GPM recirculation pumps, Primary-Polisher mixed-bed portable exchange deionization tanks (PEDI), ultraviolet sterilizer (UV) unit, final sub-micron filter housing, central PLC/HMI panel, and pump motor starter panel.  Distribution loop piping and valves are fusion-welded polypropylene.  1000-Gallon RO Water Storage Tank provided but not shown.
