Triplex Water Softener & Duplex Brine Pump Skid

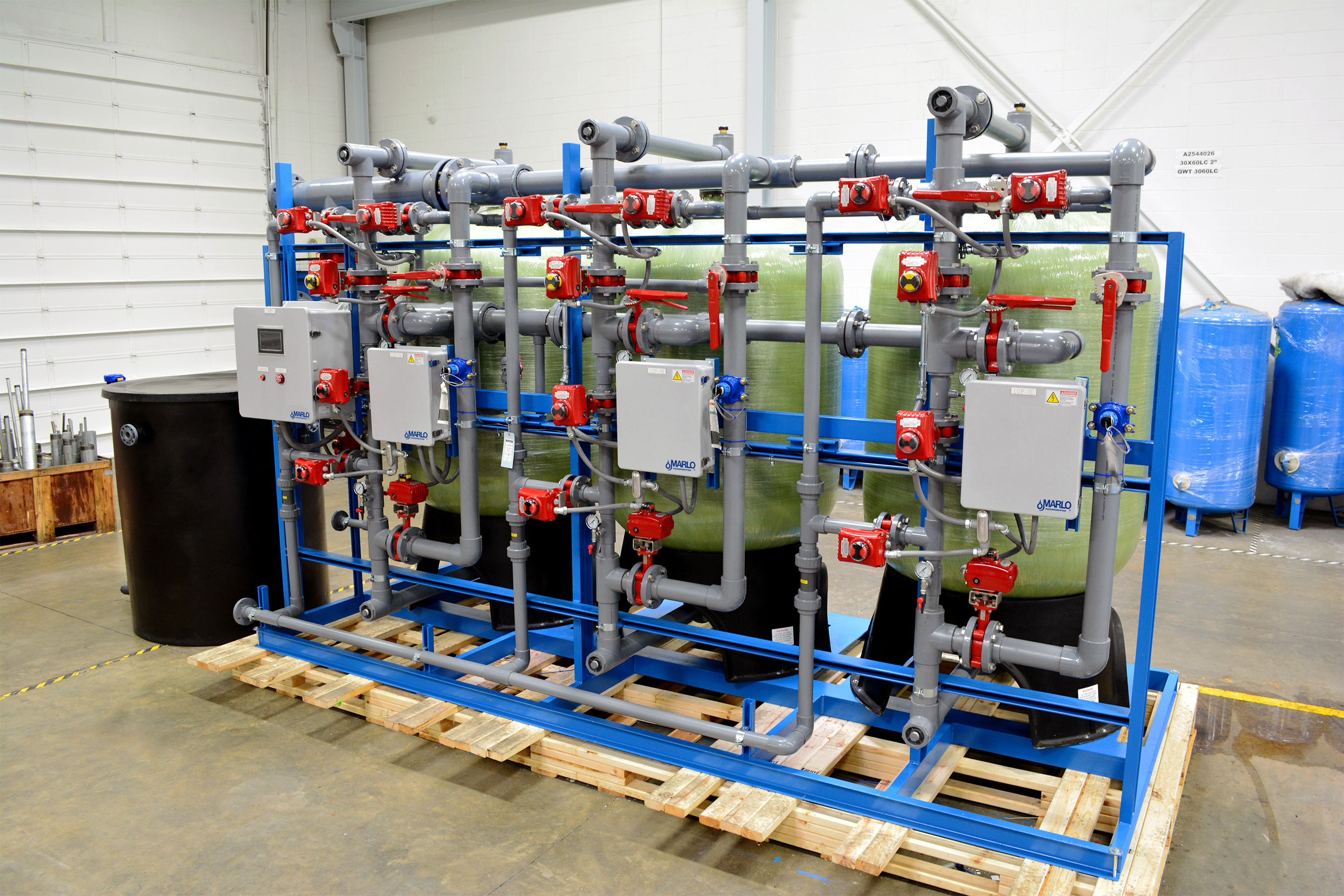

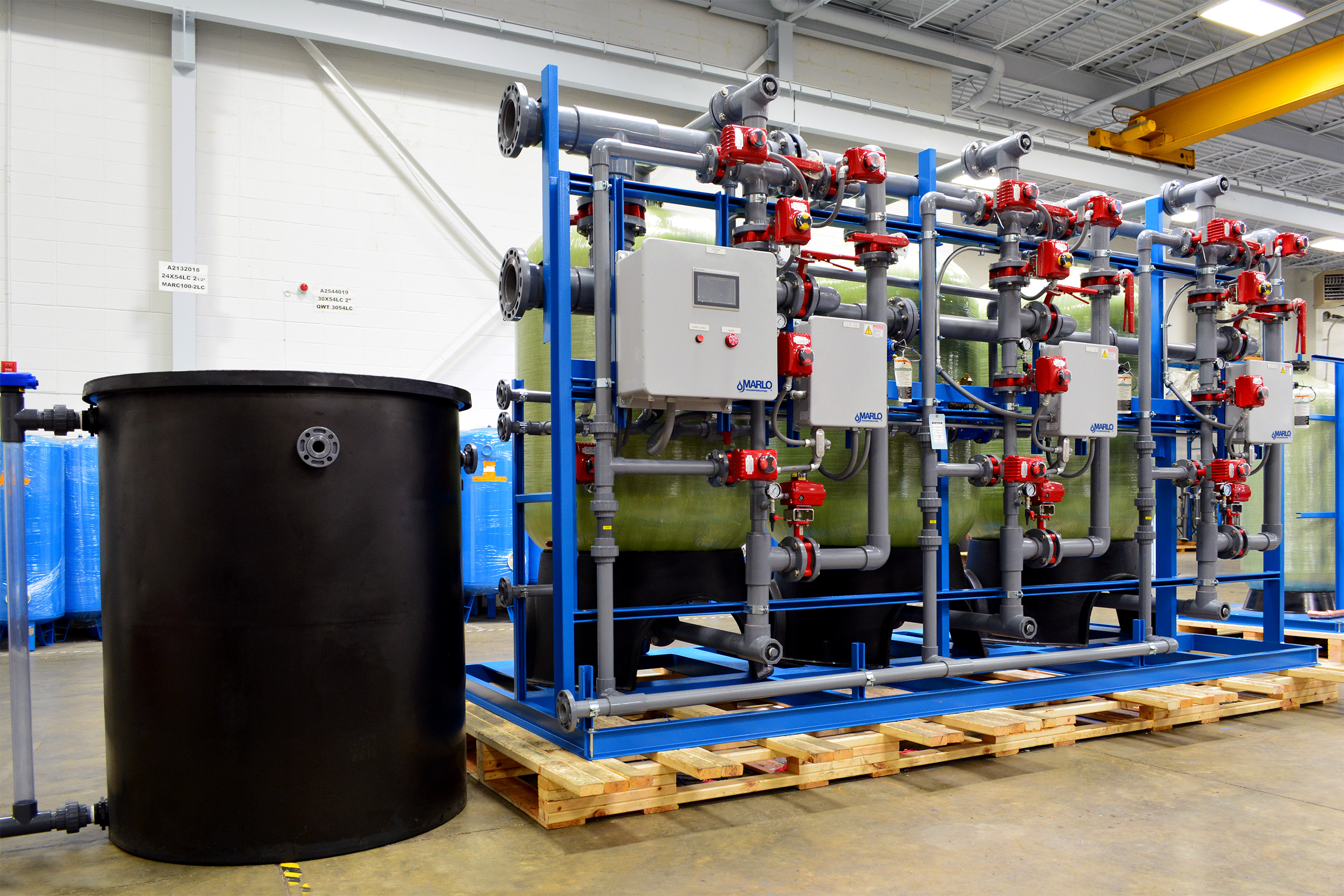

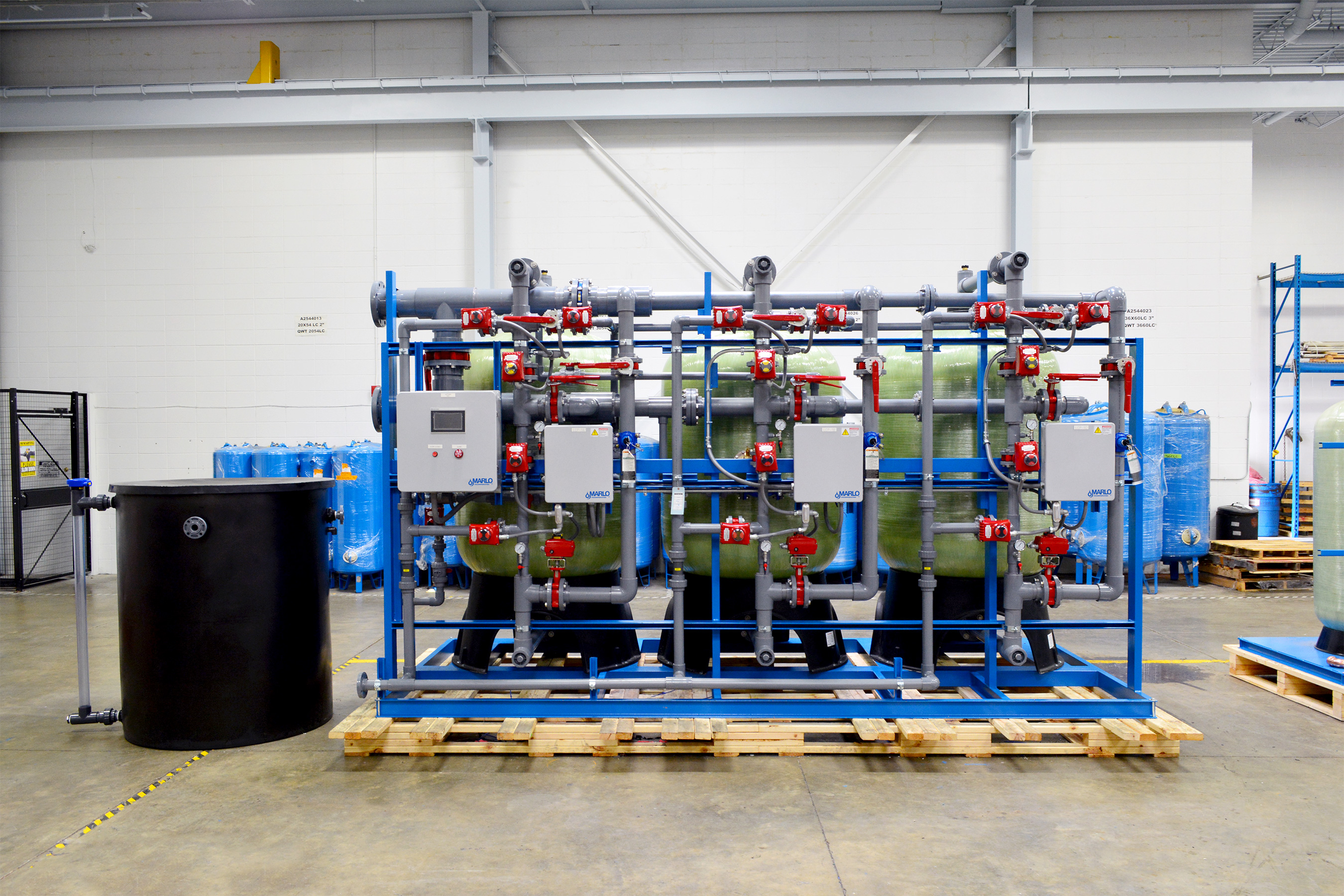

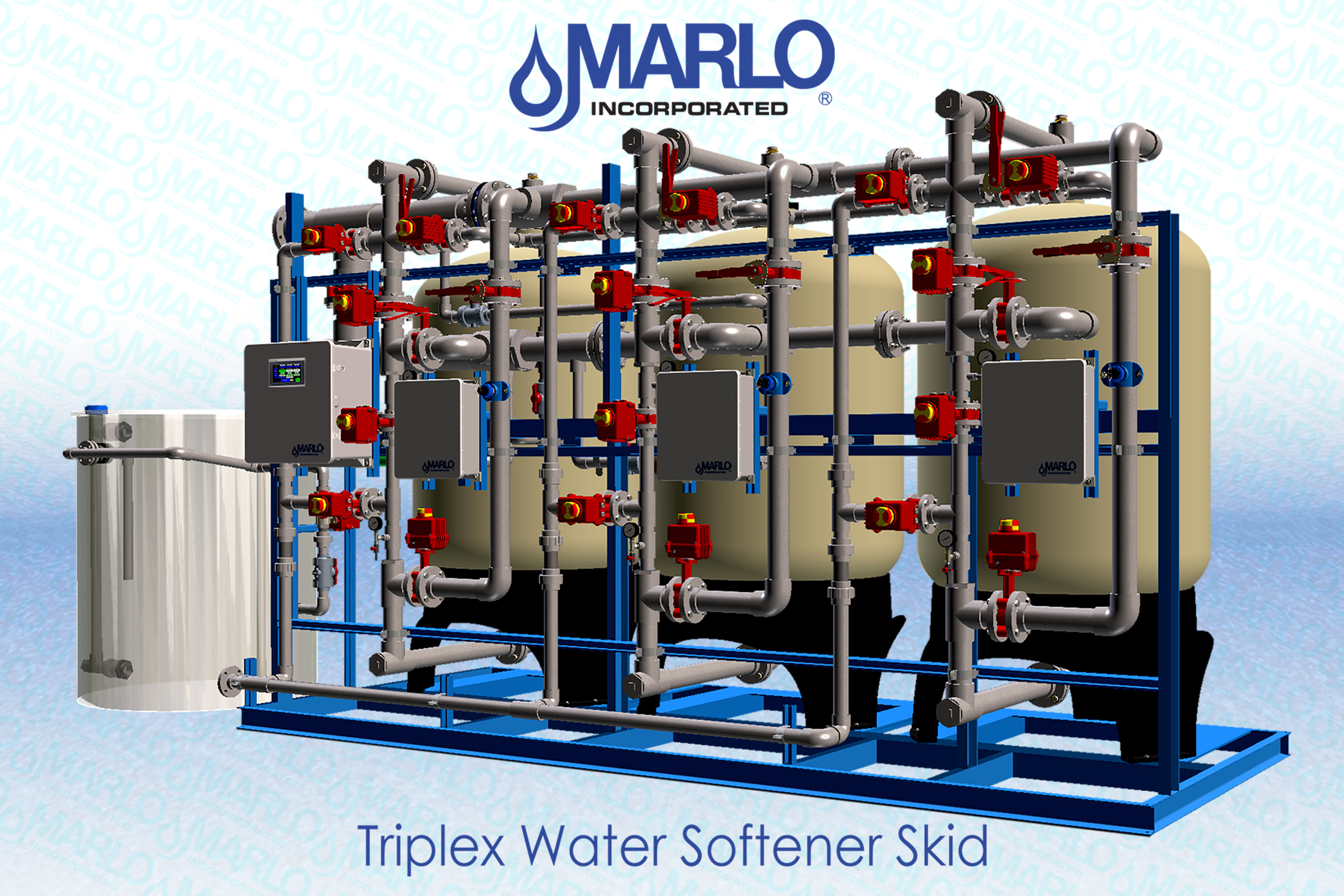

We just finished up factory testing of a Triplex Water Softener Skid for an expansion hotel tower at a major Las Vegas resort and casino.

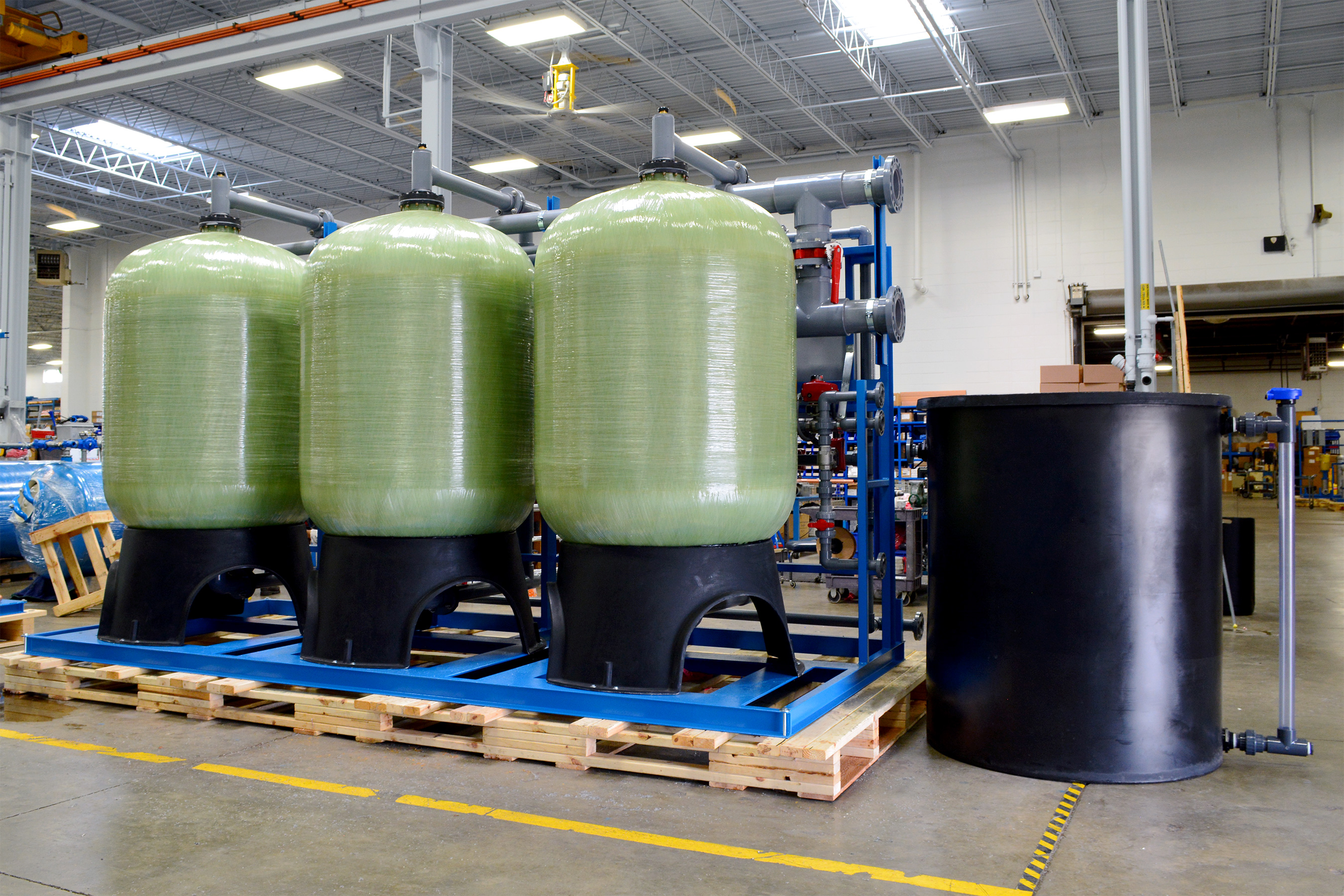

Key features include 48" diameter ASME rated FRP resin tanks, electric-actuated butterfly control valves, Sch 80 CPVC pipework, and PLC/HMI control panel.

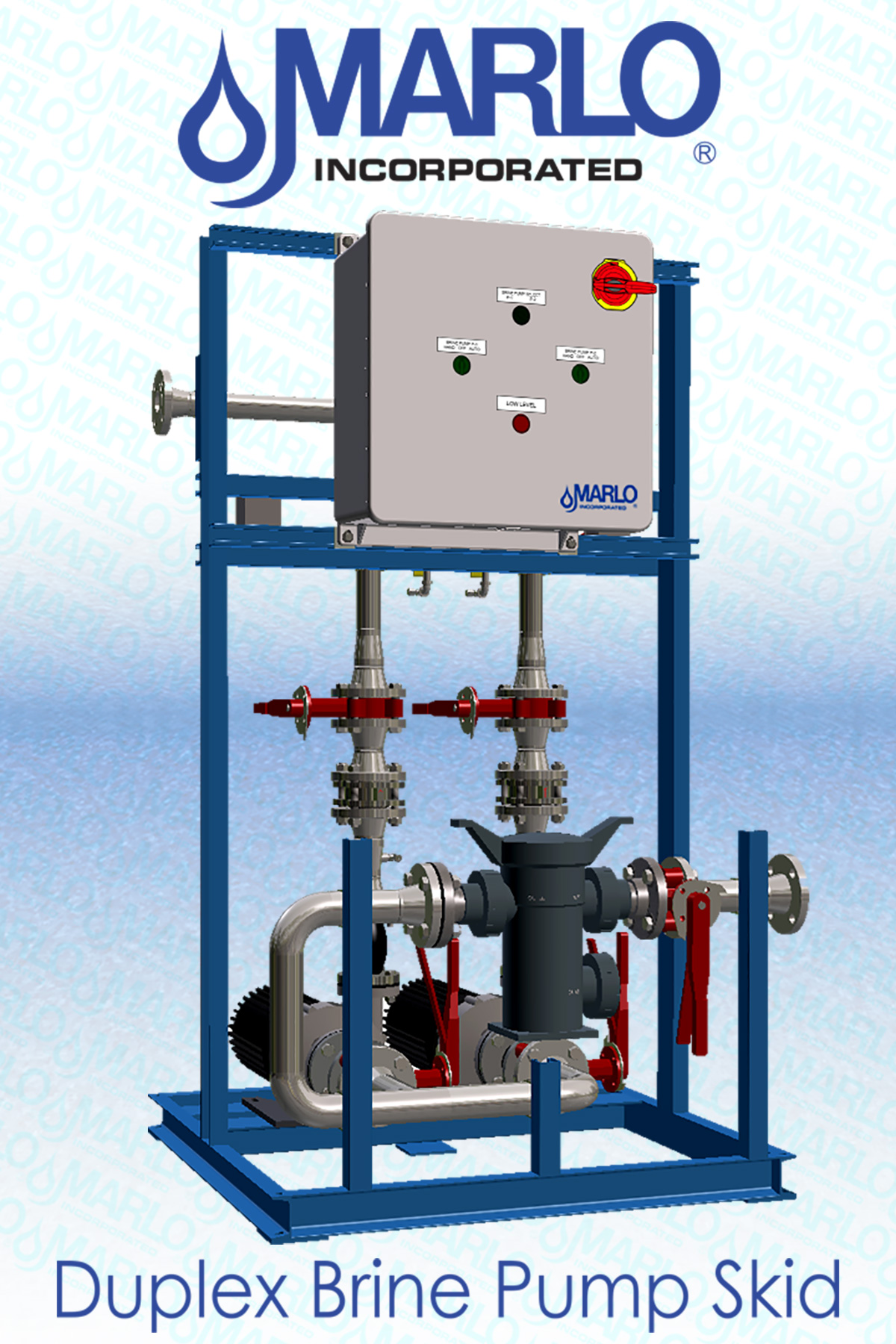

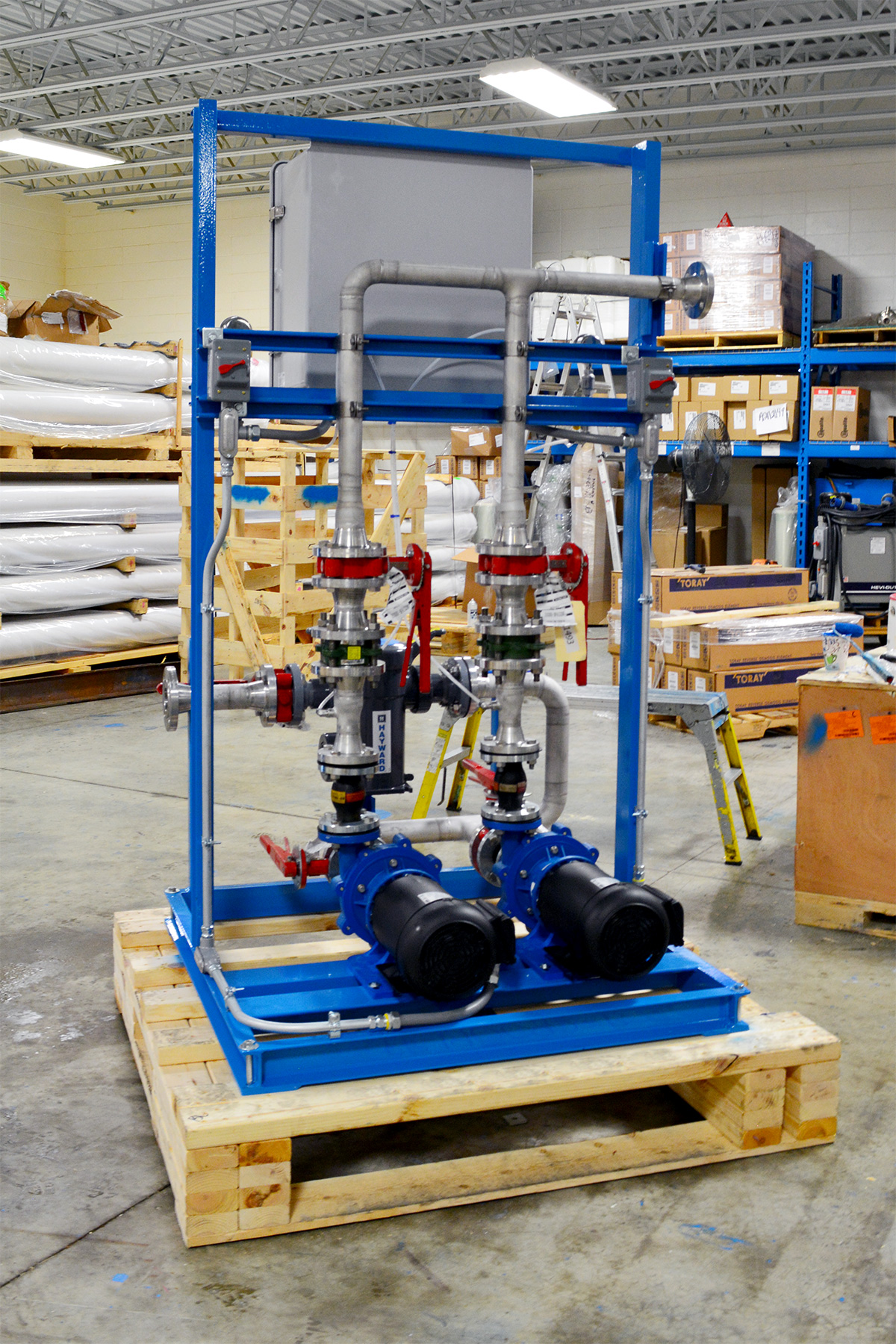

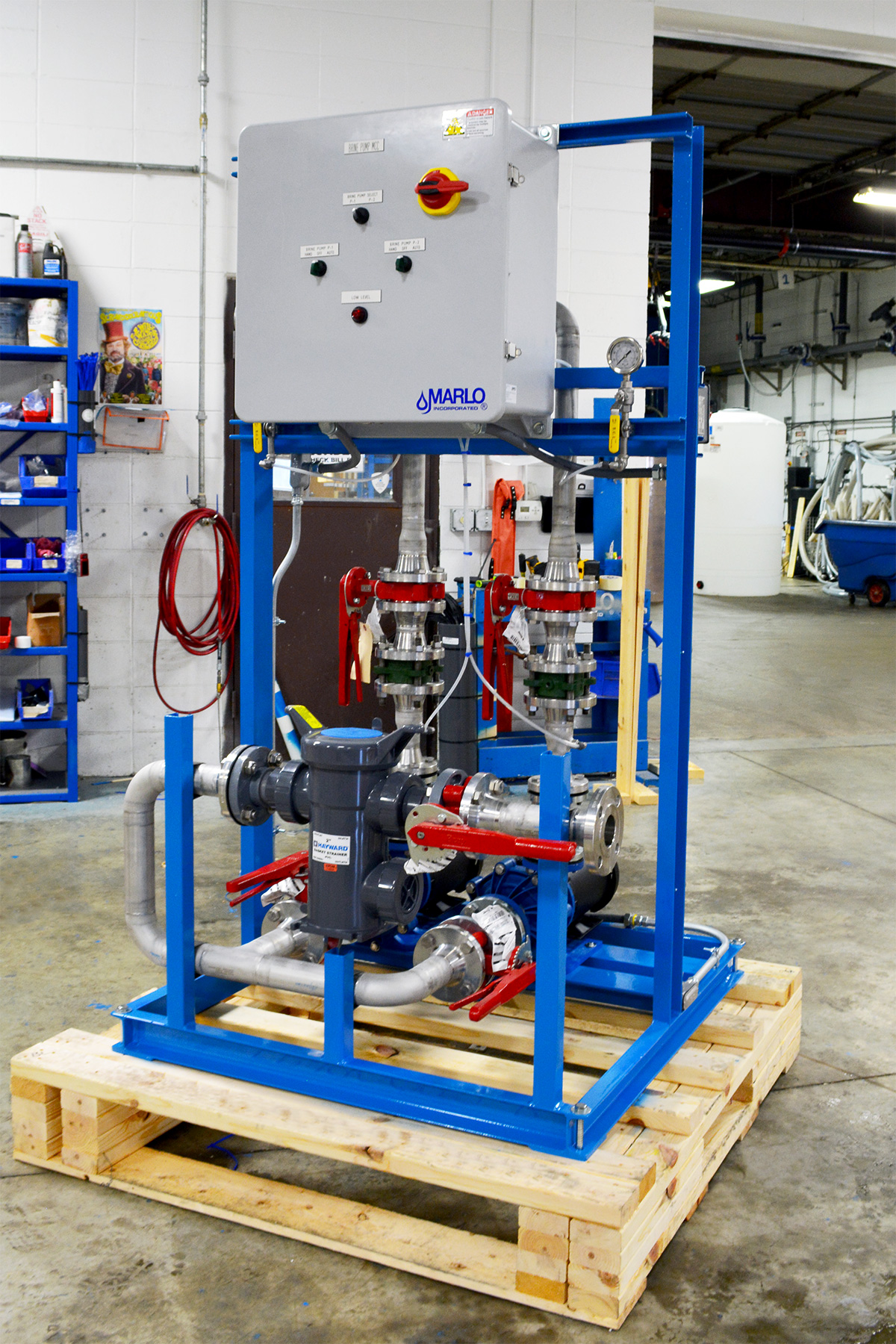

A brine measuring tank and duplex brine pump skid is also provided to deliver saturated brine from the existing bulk brinemaker silo to the softener system. Design peak service flow is 650-GPM.
